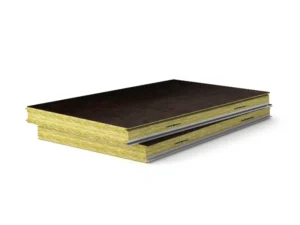

Our standard production is 0,45 mm thick sheet on the both surface and 42(+/-2) m3/kg density polyurethane injected interlocking panels between galvanized sheet,CrNi,etc. Corrugated floor panels are the same as wall/ceiling panels with 5 different thicknesses. Corrugated panels have a load bearing capacity of 2000 kg/m2, and optionally, non-slip CrNi or 200 micron PVC coated sheet on plywood can be used on the surface.
| Panel width (mm) | 230 – 530 – 1130 |
| Panel Thickness (mm) | 80 – 100 – 120 – 150 – 200 |
| Panel Density | 40±2 kg/m³ |
| Coefficient of thermal conductivity(EN 13165) | 0,020-0,023 W/mK |
| Thermal Resistance | 2,5 m2 K/W |
| Lock Mechanism | Yes |
| External Sheet Surface Layering Materials | Polyester Painted Galvanised Sheet- PVS – CrNi |
| Colour | RAL 9002 |
| Pattern | Corrugated – Plain |
| Insulator | Polyurethane |
| Sheet thickness (mm) | 0,50 mm |
